A shielded enclosure is needed, which is available from Sensus Healthcare (Sensus Shield™), and the supervision of a physician during equipment operation according to state regulations and laws

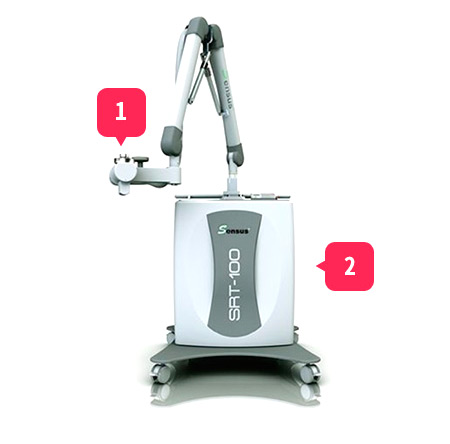

① RAD Check – Pre-Treatment Energy Verification ② 2High Frequency Inverter Technology

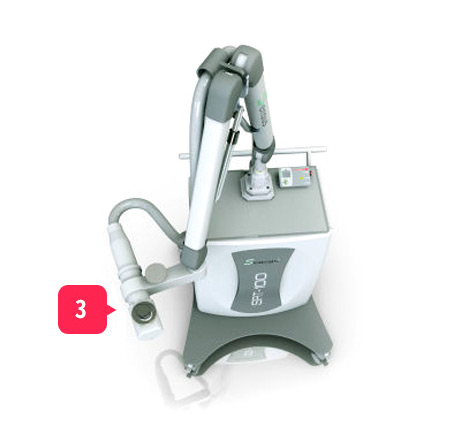

③ Radiation Fields Precisely Defined

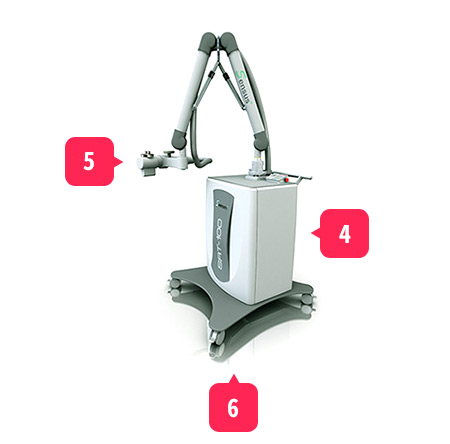

④ Physicist Calibrations are Stored in the System ⑤ 5Al Filters Automatically Placed at X-Ray Tube Port
Type: Constant potential HV Input Line: 120/230 VACSystem Weight : 350 lbs. (160 kg)Automatic Warm Up Procedures - Automatically activated from time of last exposure

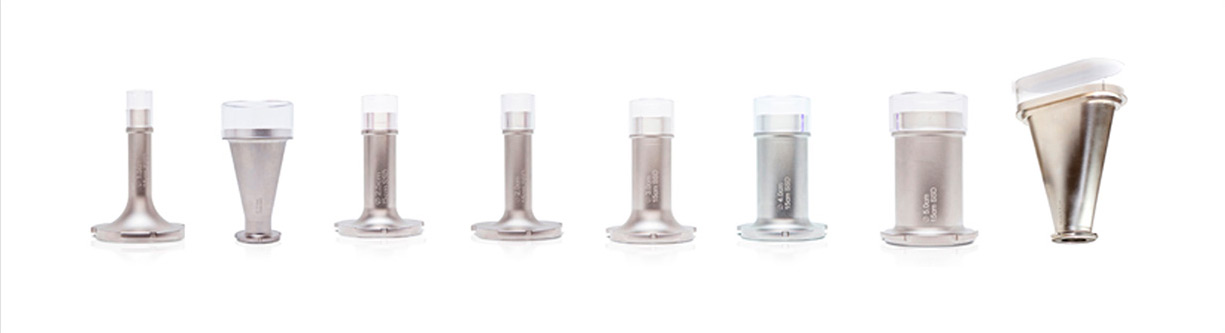

Standard size treatment applicators - 1.5 cm, 3 cm and 5 cm diameter at 15 cm SSD Optional size treatment applicators - 1.0 cm, 2 cm, 2.5 cm, 4.0 cm, 7.3 cm diameter at 15 cm SSD - 10 cm, 12.7 cm diameter at 25 cm SSD Replaceable safety contact shields - Applicator size specific - Visibility of treated area
Metal-ceramic / Water-cooled Tungsten target / End grounded Rating · 100 kV/10 mA Rating · 100 kV/10 mA - 40 kV/30 mA - 1000 W continuous dissipation Focal spot size: 5 mm x 5mm
Base space requirements: 30” x 30” Vertical arm travel: 57” Horizontal arm travel: 49” X-ray tube movement: V&H 180 degrees Integrated modular components: Input power, HV generator, heat exchanger
Can be located up to 100’ (30 meters) from base unit Service mode for system set-up and calibration (key entry)
Direct radiation measurement of output Pre-treatment verification
100 kV at 8 mA, 2.0 mm Al. HVL 70 kV at 10 mA, 1.0 mm Al. HVL 50 kV at 10 mA, 0.45 mm, Al. HVL
The control console provides the controls and indicators to set up SRT exposures and to initiate, monitor, and terminate them. The control console is located remotely from the x-ray base unit.
350 lbs. (160 kg) Based on KVMA Selection, the system will automatically select the proper filter – no human error, no braking, no bending, or incorrect size. Pre-treatment verification
